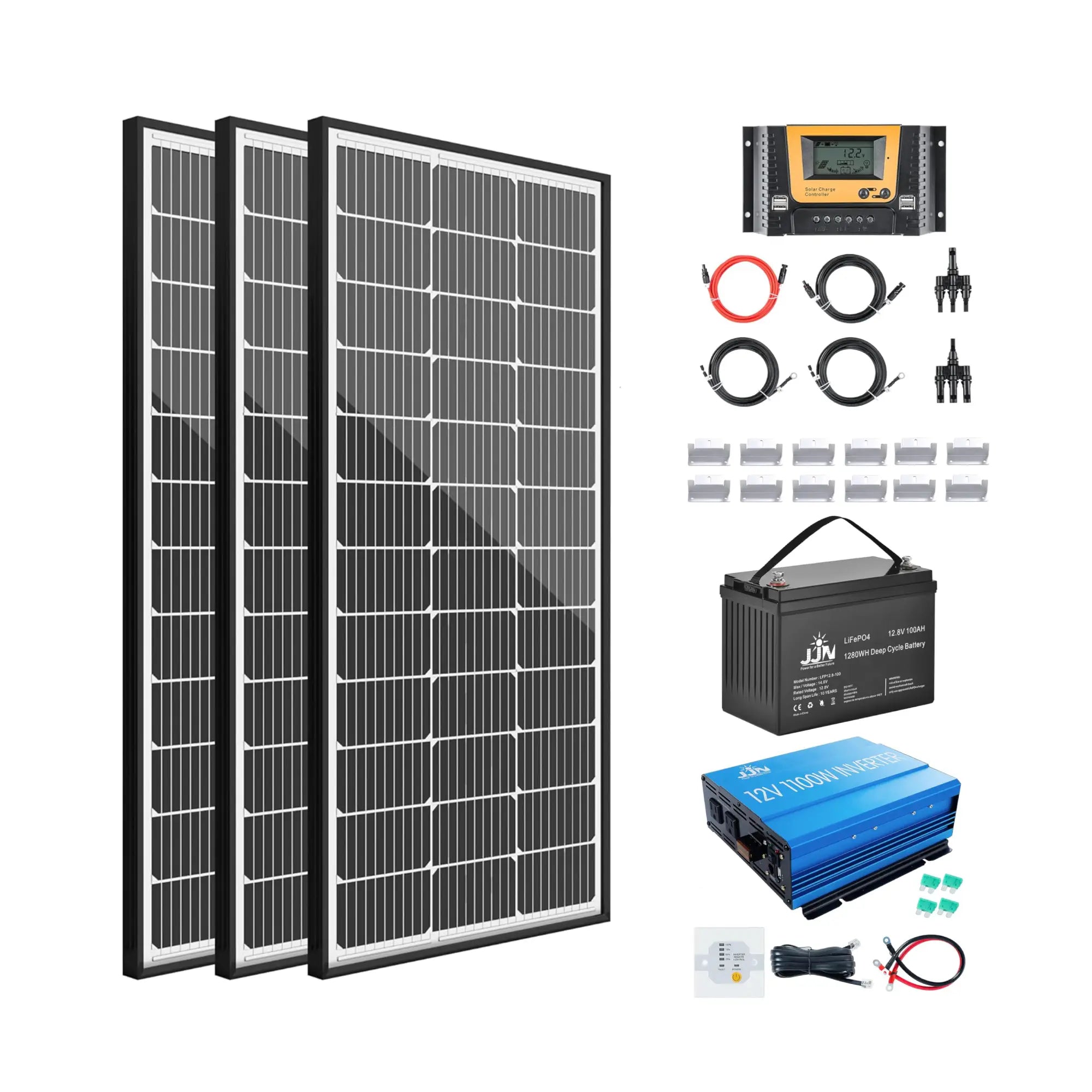

300W 12V Solar Panel Kit for RV, Trailer, Camper, Marine, Off Grid| 3pcs 100W Solar Panel, 40A PWM Solar Charge Controller,100Ah Lithium Battery + 1100W Power Inverter

300W 12V Solar Panel Kit for RV, Trailer, Camper, Marine, Off Grid| 3pcs 100W Solar Panel, 40A PWM Solar Charge Controller,100Ah Lithium Battery + 1100W Power Inverter

Regular price $699.00 USD
Regular price $769.00 USD Sale price $699.00 USD
Sale Sold out
Shipping calculated at checkout.

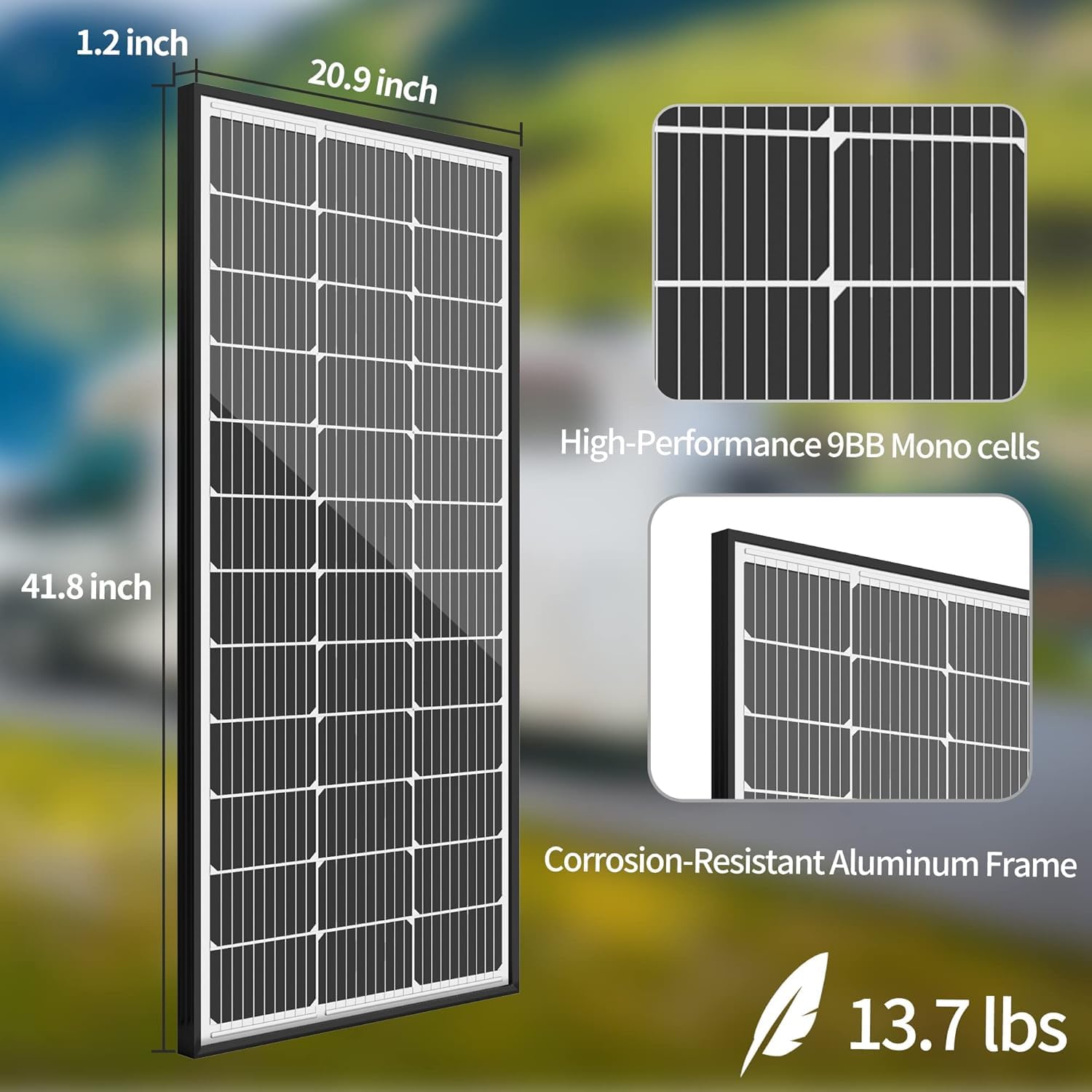

100w Panel Solar Specifications

  • Module Type: JJN100D-36-M6-NEW
  • Maximum Power: 100W
  • Open-Circuit Voltage (Voc): 24.3 V
  • Short-Circuit Current (Isc): 5.21 A
  • Optimum Operating Voltage (Vmp): 20.4 V
  • Optimum Operating Current (Imp): 4.91 A
  • Maximum System Voltage: 600VDC UL
  • Maximum Series Fuse Rating: 15 A

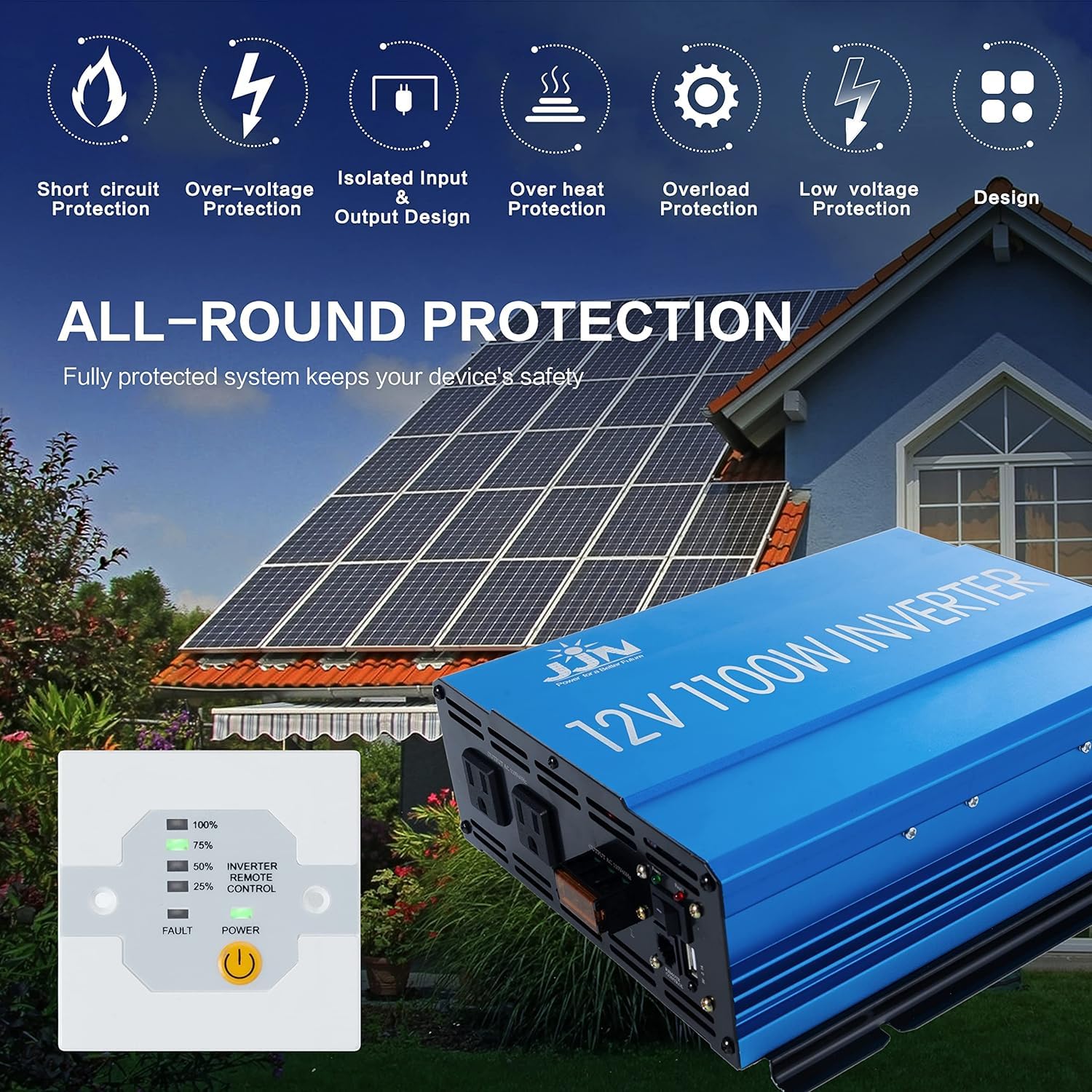

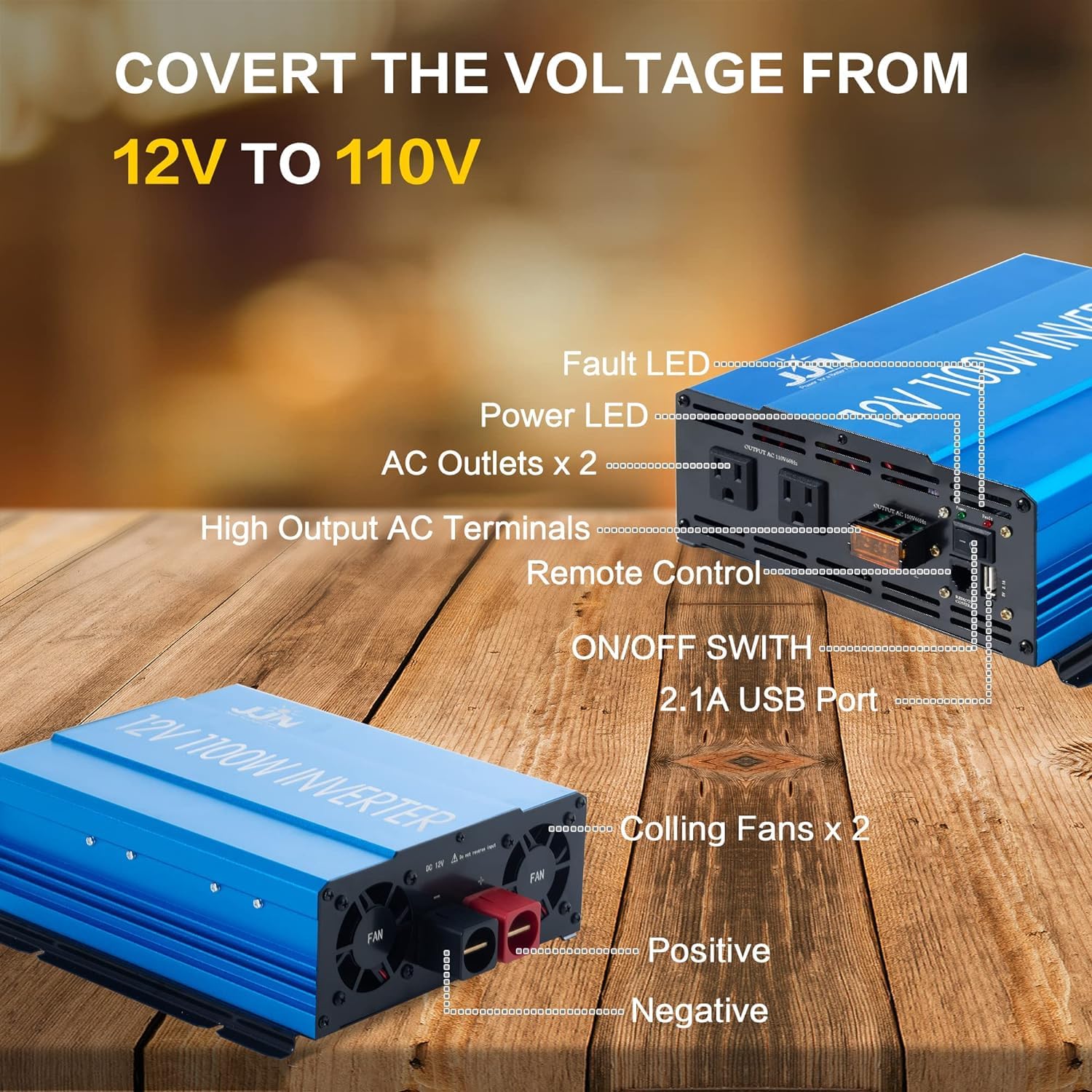

1100 Watt Inverter Specifications

  • Continuous Output Power 1100w
  • Surge power 2000w
  • Input Voltage DC 12V
  • Output Voltage AC 110V
  • Output Frequency 60Hz± 0.1%
  • Low Battery Alarm 10 Volts ± 0.5 Volts
  • Low Battery Shut-off 9.5 Volts ± 0.5 Volts
  • Wave Form Modified Sine Wave
  • Efficiency >85%
  • USB Output Current 5V 2.1A USB Ports
  • Dimensions 10×8.07×3.45 inch
  • Weight 5.5 lbs

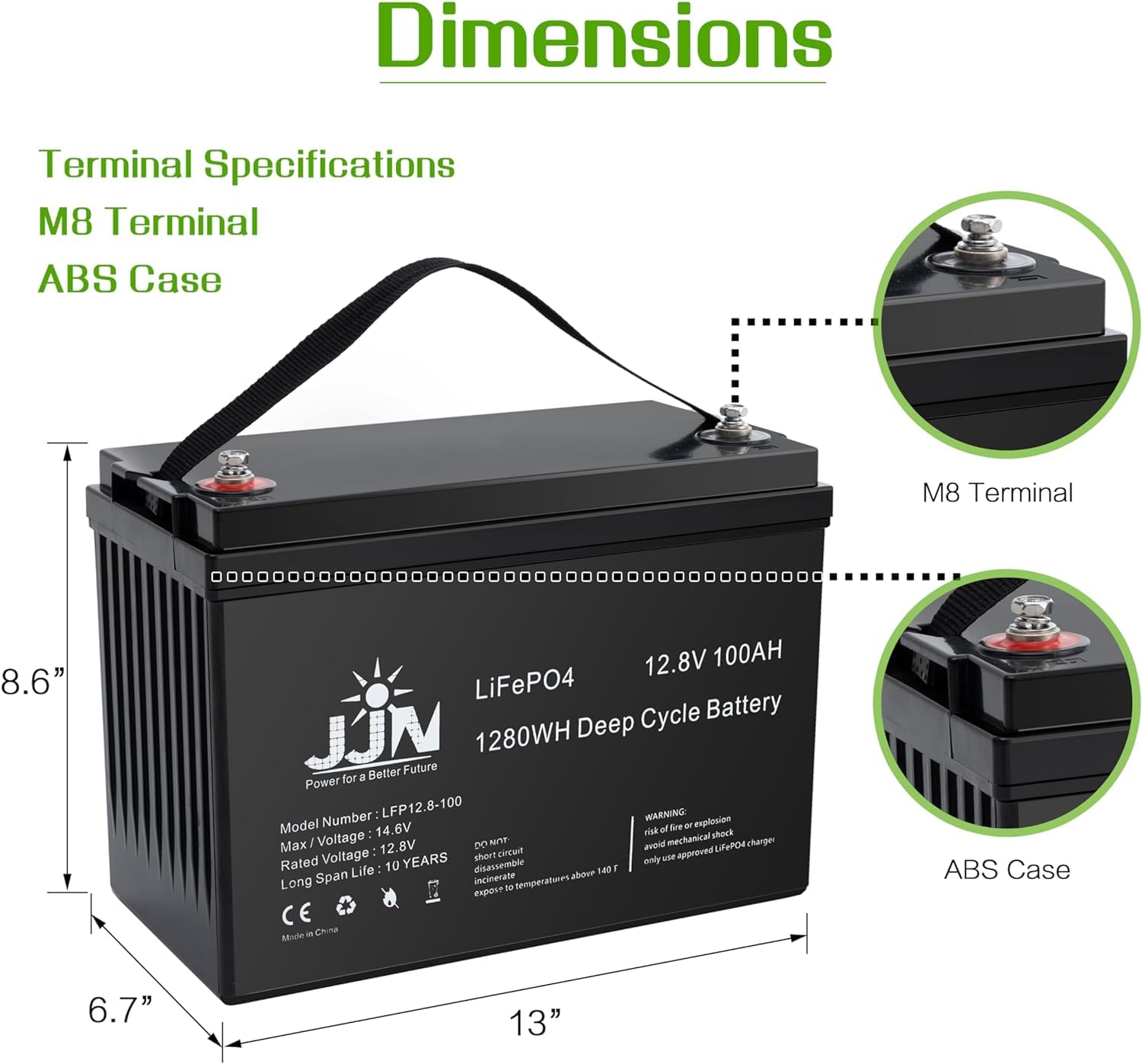

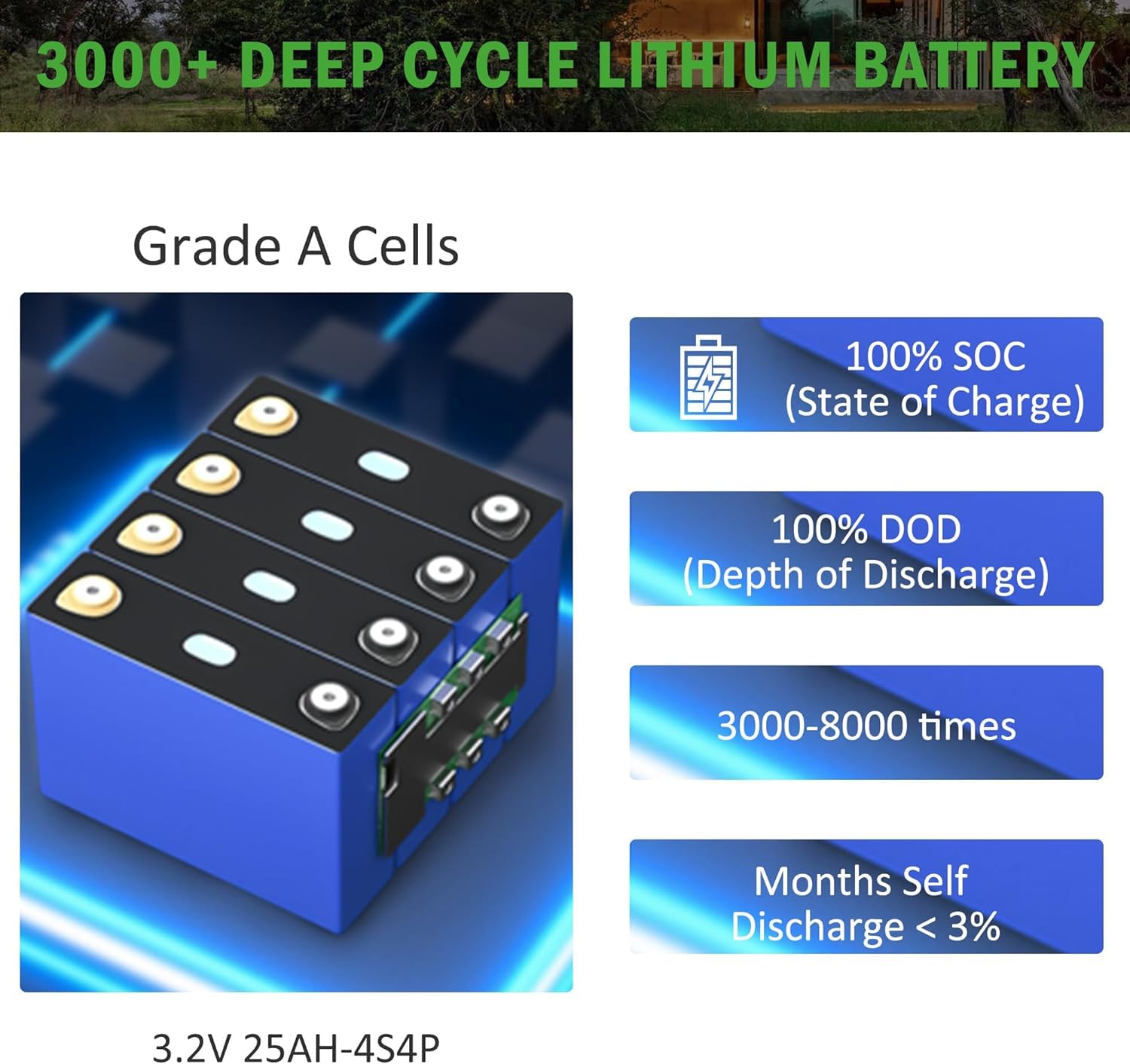

Lithium Iron Phosphate Battery Specifications

  • Nominal Capacity 100Ah
  • Nominal Voltage 12.8V
  • Cycle Time 3000-8000 Times
  • Charge Voltage 14.6 ± 0.2V
  • Charge Current 50A
  • Max.Charge Current 100A
  • Max.Pluse Current 300A(<3s)
  • Discharge Cut-off Voltage 10V
  • Charge Temperature 32℉~113℉
  • Discharge Temperature -4℉~140℉
  • Storage Temperature 14°F~95°F
  • Lifespan 10 Years
  • Dimension 12.6 X6.3 X 7.87 IN
  • Weight 24.3 lbs

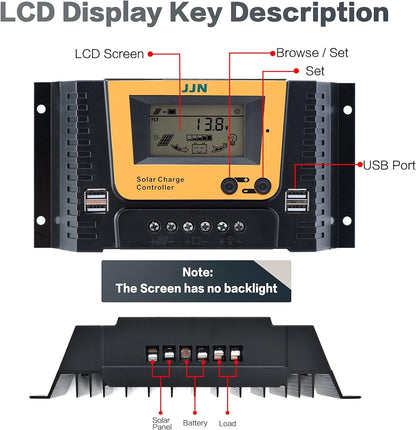

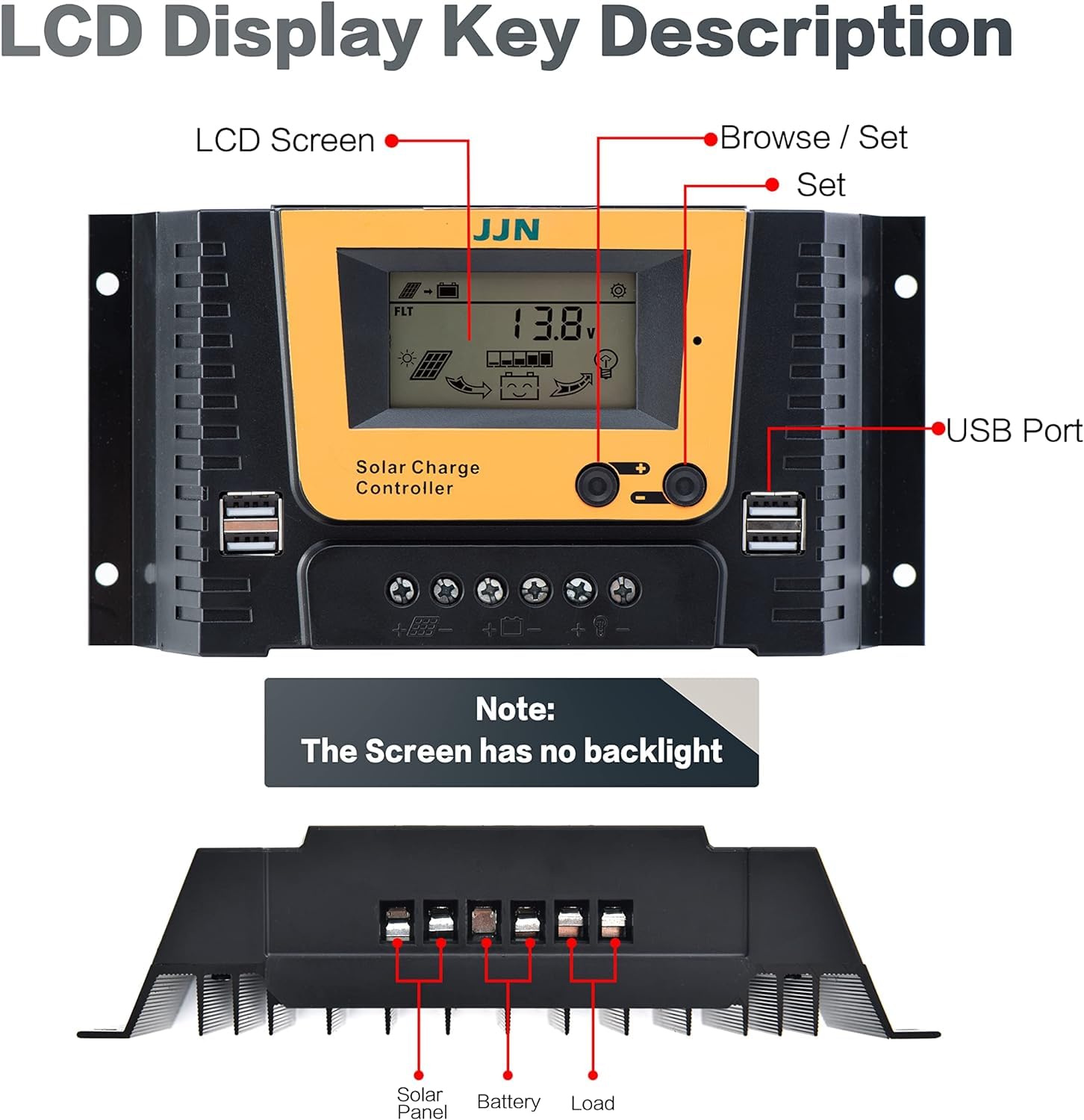

    40A Solar Charge Controller

    • Battery Voltage/System Voltage 12V/24V/36V/48V Auto
    • Max PV Open Circuit Voltage 100V
    • Self-consumption ≤30mA
    • Loop Voltage Drop ≤0.3V
    • Battery Type User, Flooded, AGM, Gel, LifePO4, Lithium
    • USB Output 5V/2A×2
    • Operating Temperature -4℉~+122℉ (-20℃~+50℃)
    • Protection Category IP32
    • Terminals 10AWG/3.332m㎡
    • Humidity 95%, no-condensing
    • Discharge Current 40A
    • ☀【High Efficiency】JJN 100 watt solar panels Kit adopt the 9BB solar panel cell design and are made of excellent Grade A+ cells. The conversion rate is as high as 22% and each solar panel can provide about 500 Wh of electricity per day (depending on sun availability). Compared with 5BB and Grade B solar panel cells, it has better quality and efficiency.

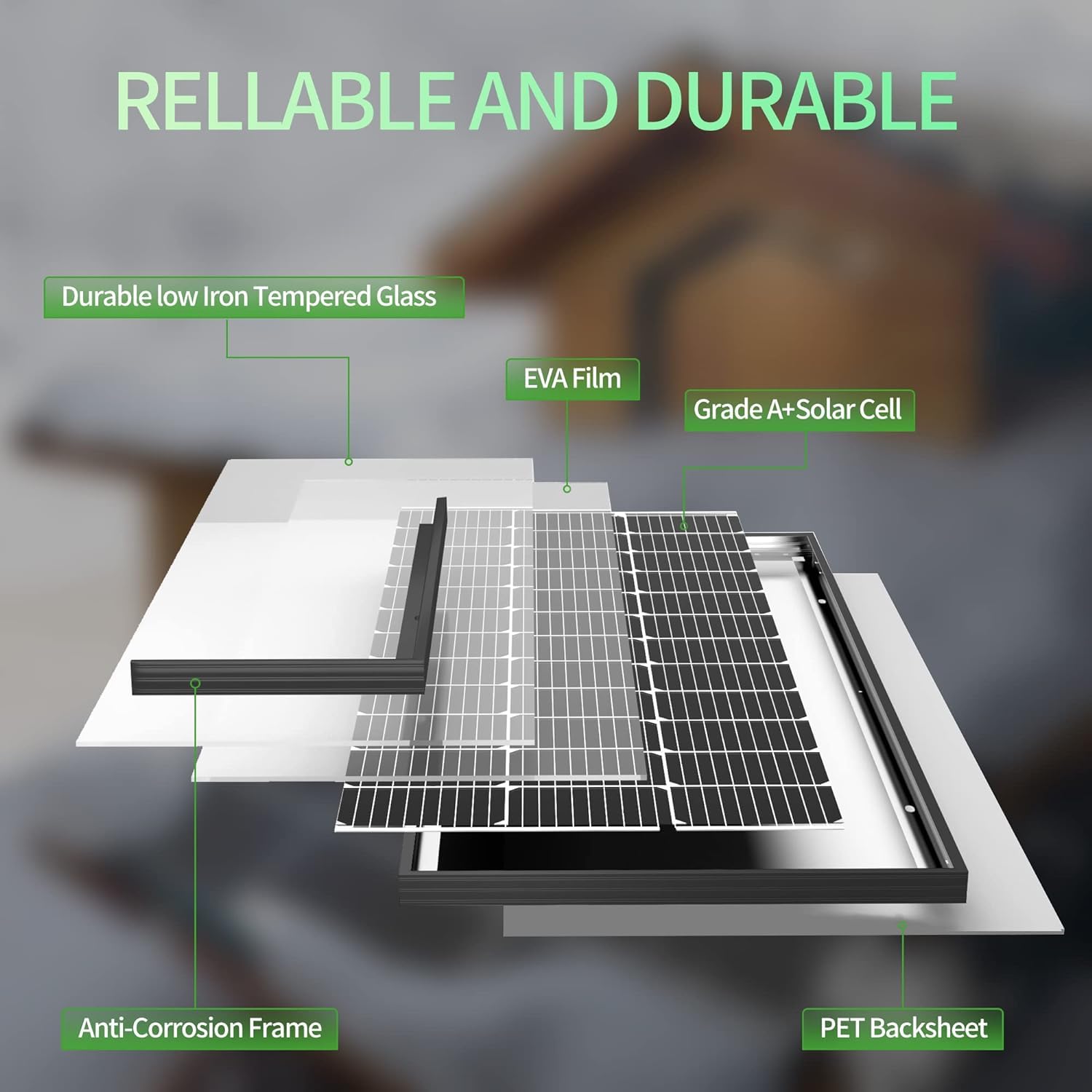

    • ☀【Upgraded Design】JJN monocrystalline solar panel upgraded the latest half-cut cell technology, which makes the solar panels obtain better and more stable performance. Compared to regular solar panel, half-cut cell technology can reduce power loss, lower solar panel temperature and reduce the impact of shading on performance.

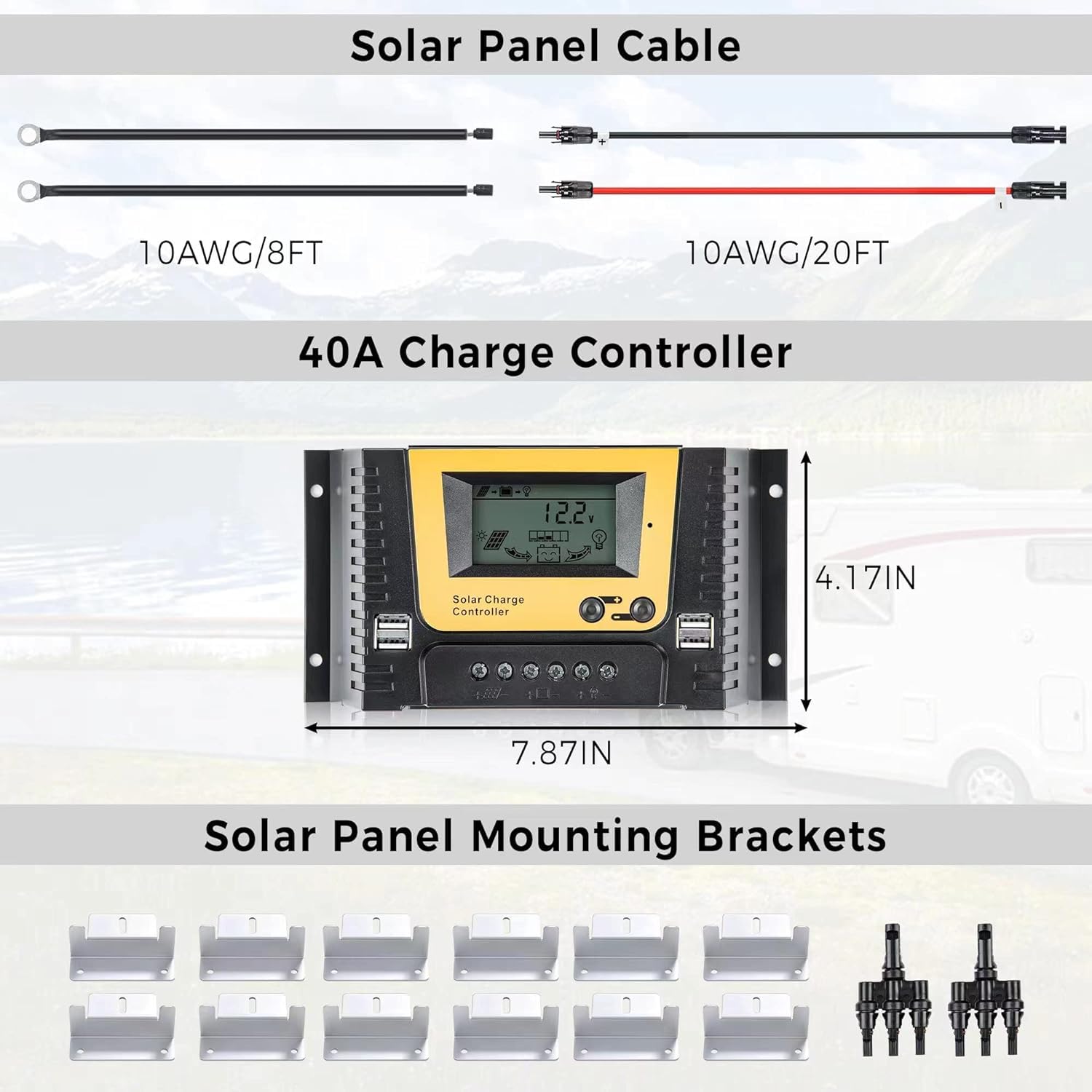

    • ☀【Easy to Installation】Each 12 Volt solar panel has specially designed pre-drilled holes for easy installation. It can fully meet the installation needs of various applications. It is compatible with JJN's Z mounting Brackets in the kit. At the same time, we are equipped with two pairs of wires, which can easily connect solar panels, controllers and external batteries. There is no need to choose additional wires.
    • ☀【What You Get】JJN solar kits are very friendly to starters. The included 20A charge controller can make this solar system suitable for different 12V batteries, such as Wet, Gel, MF, EFB, and AGM. It can be applied to RV, Camper, boat and home green energy storage.
    • ☀【Long Warranty】As a professional solar system manufacturer,We promise an extra-long transferable power output warranty of 20 years. Whenever you encounter any problems, JJN Solar Panels Service will actively provide you with professional off grid system solutions.
    View full details

    US WAREHOUSE

    We promise ship within 2 working days after receiving the order and shipping takes about 5 working days. If you find unexpected things after receiving the package, please contact us by email. We will sincerely solve the problem for you.

    Reviewed in the US on November 9, Size: 200W Single Piece

    Marine application- one would think the perfect environment for a bifacial panel.

    Paired two panels with a victron smart Solar 30a controller on the boat and on a warm sunny day in November we were up and running at 103% rated value. All for $1/watt and the possibility of a 30y performance warranty?

    Initial assessment is very good.

    The under layer is only a plastic film, so if one were to pick a nit, that would be it. Time will tell if the plastic film is resistant to heat and reflected sunlight.
