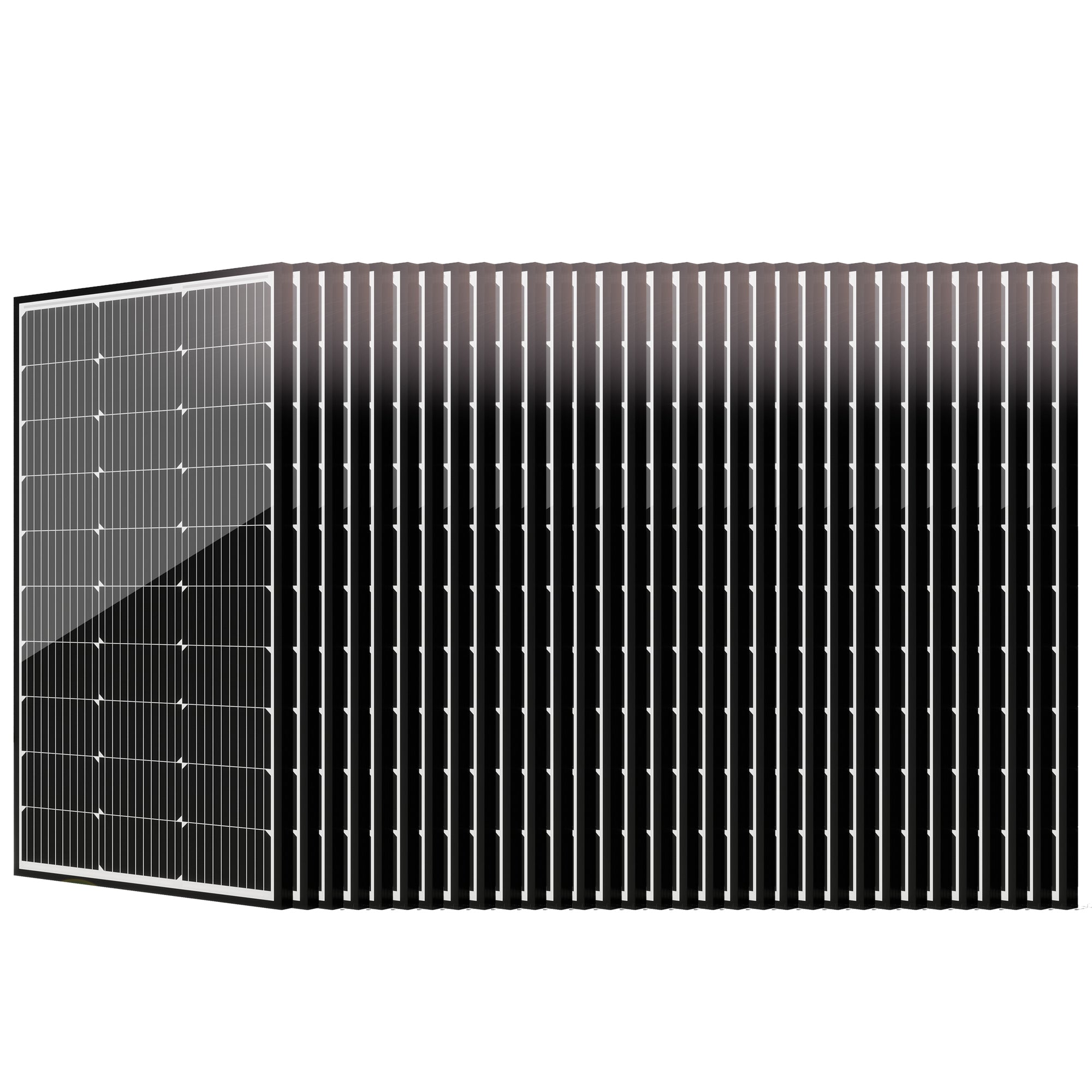

JJN 9BB Solar Panel, 32PCS 100W Monocrystalline Solar panels, 12V/24V,High-Efficiency Mono Cells Off-Grid Charge System for Home Marine Boat Shed Farm
JJN 9BB Solar Panel, 32PCS 100W Monocrystalline Solar panels, 12V/24V,High-Efficiency Mono Cells Off-Grid Charge System for Home Marine Boat Shed Farm
Couldn't load pickup availability
Open-Circuit Voltage (Voc): 24.3 V
Short-Circuit Current (Isc): 5.21 A
Optimum Operating Volt: 20.4 V
Optimum Operating Current: 4.91 A
Cables with MC4 Connectors: 12 AWG
Junction Box: IP65 Waterproof
Weight 13.7 lbs

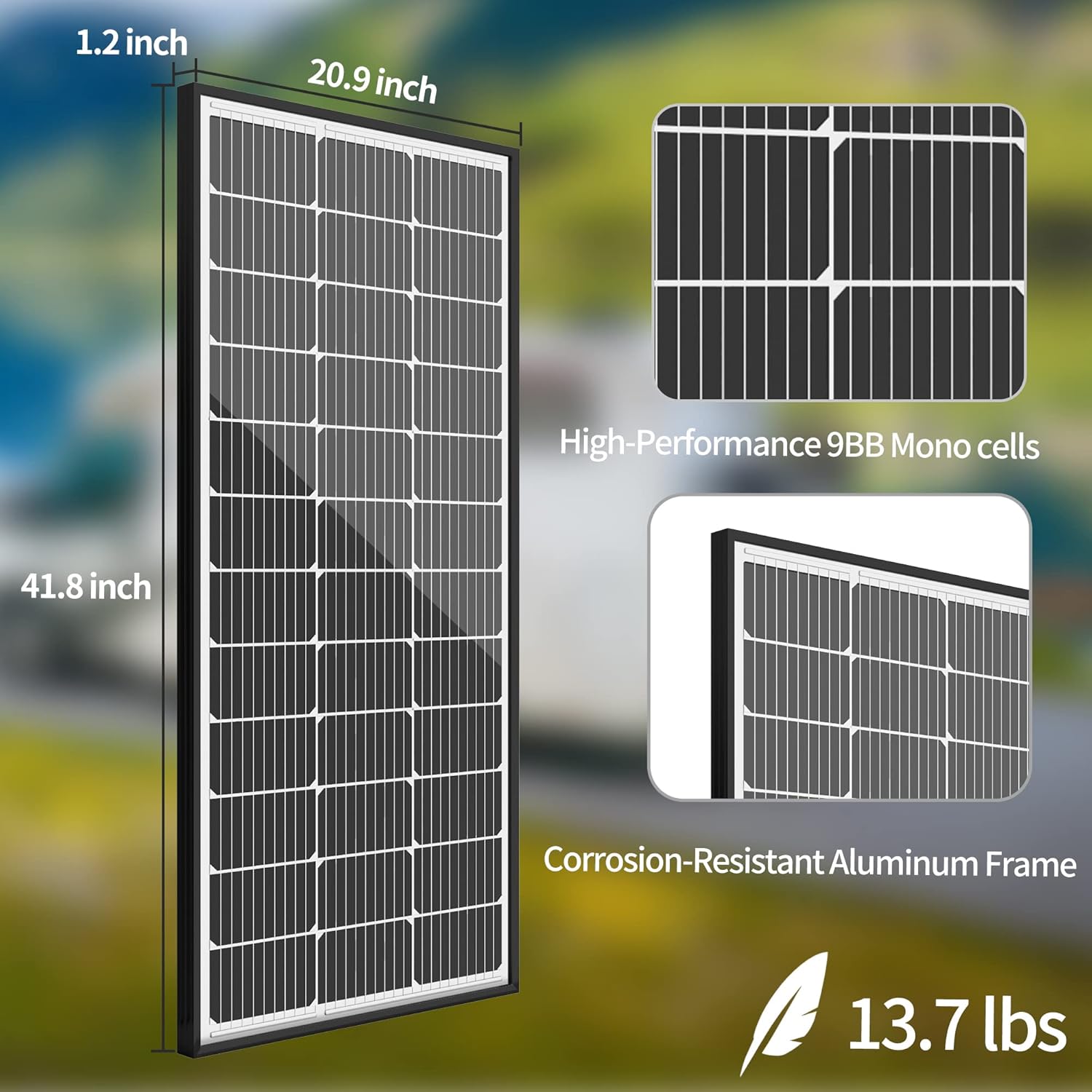

Dimensions 41.8*20.9*1.2 inch
Max. Series Fuse Rating 15A
Max. System Voltage 600VDC UL
- ☀【High Efficiency】JJN 100 watt solar panels adopt the 9BB solar panel cell design and are made of excellent Grade A cells. The conversion rate is as high as 22% and can provide about 500 Wh of electricity per day (depending on sun availability). Compared with 5BB and Grade B solar panel cells, it has better quality and efficiency.
- ☀【Upgraded Design】JJN monocrystalline solar panel upgraded the latest half-cut cell technology, which makes the solar panels obtain better and more stable performance. Compared to regular solar panel, half-cut cell technology can reduce power loss, lower solar panel temperature and reduce the impact of shading on performance.

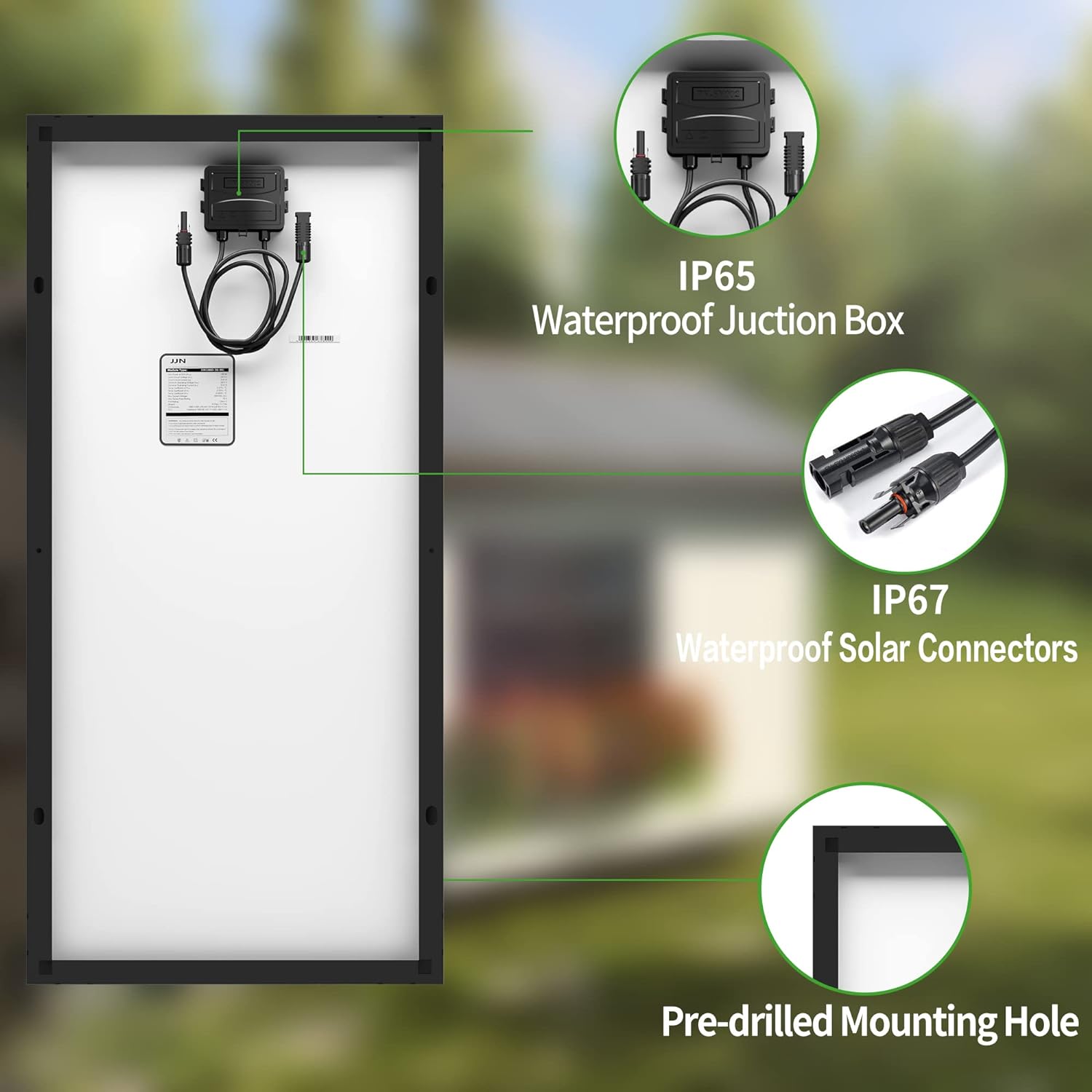

- ☀【Durable Solar Panel】Our 12V 100 watt solar panels feature a corrosion-resistant aluminum frame. It can also withstand strong winds of 2400Pa and Snowload of 5400Pa. Both the IP65 junction box and IP67 MC4 connectors have excellent waterproof function. Allows you to use it outdoors with confidence.
- ☀【Easy to Installation】Each 12 Volt solar panel has specially designed pre-drilled holes for easy installation. It can fully meet the installation needs of various applications. It is compatible with JJN's ABS corner mounts, Z mounts, adjustable tilt mounts.
- ☀【Long Warranty】As a professional solar system manufacturer，We promise an extra-long transferable power output warranty of 20 years. Whenever you encounter any problems, JJN Solar Panels Service will actively provide you with professional off grid system solutions.
US WAREHOUSE
We promise ship within 2 working days after receiving the order and shipping takes about 5 working days. If you find unexpected things after receiving the package, please contact us by email. We will sincerely solve the problem for you.
Reviewed in the US on November 9, Size: 200W Single Piece
Marine application- one would think the perfect environment for a bifacial panel.
Paired two panels with a victron smart Solar 30a controller on the boat and on a warm sunny day in November we were up and running at 103% rated value. All for $1/watt and the possibility of a 30y performance warranty?
Initial assessment is very good.
The under layer is only a plastic film, so if one were to pick a nit, that would be it. Time will tell if the plastic film is resistant to heat and reflected sunlight.
